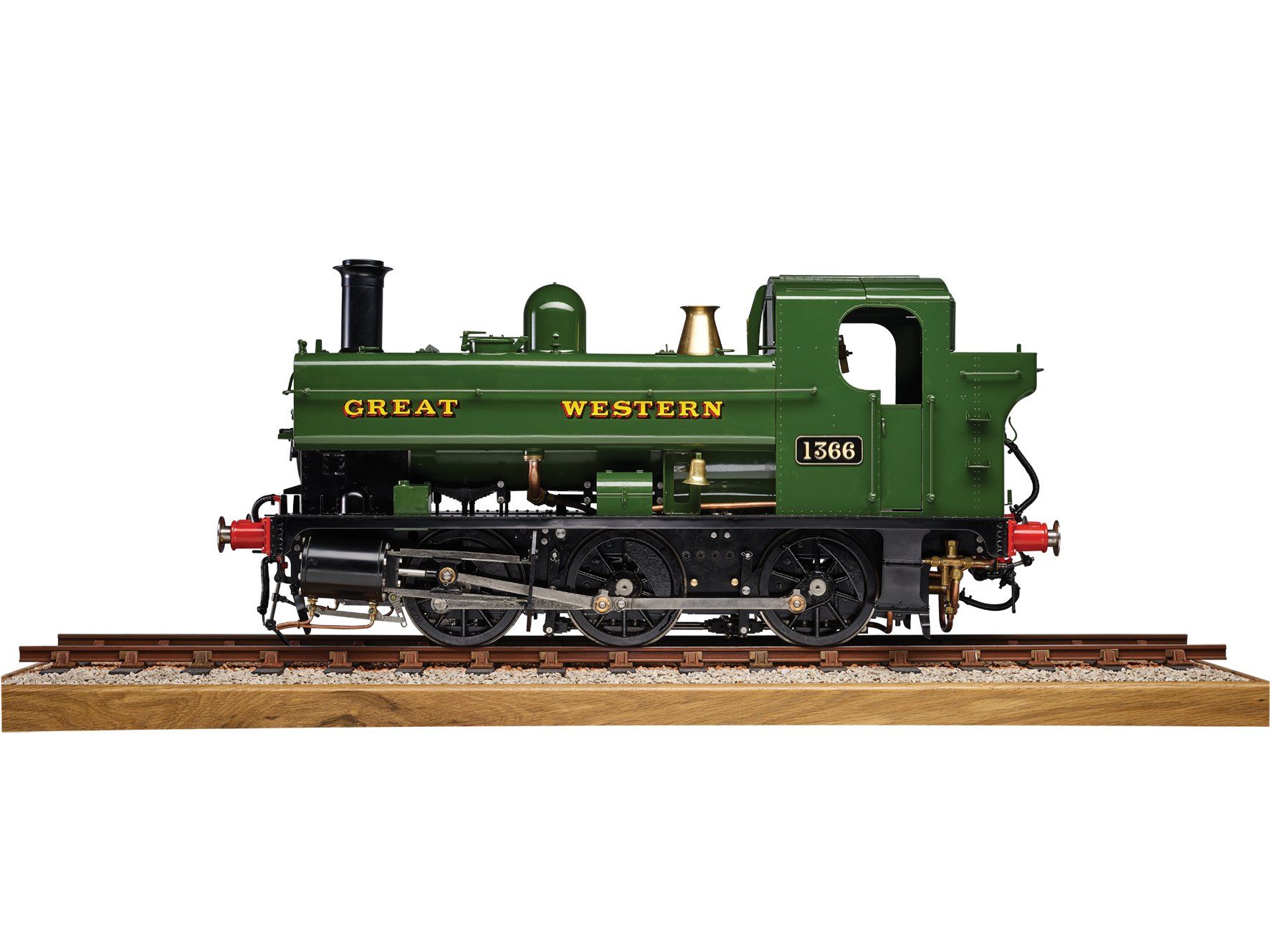

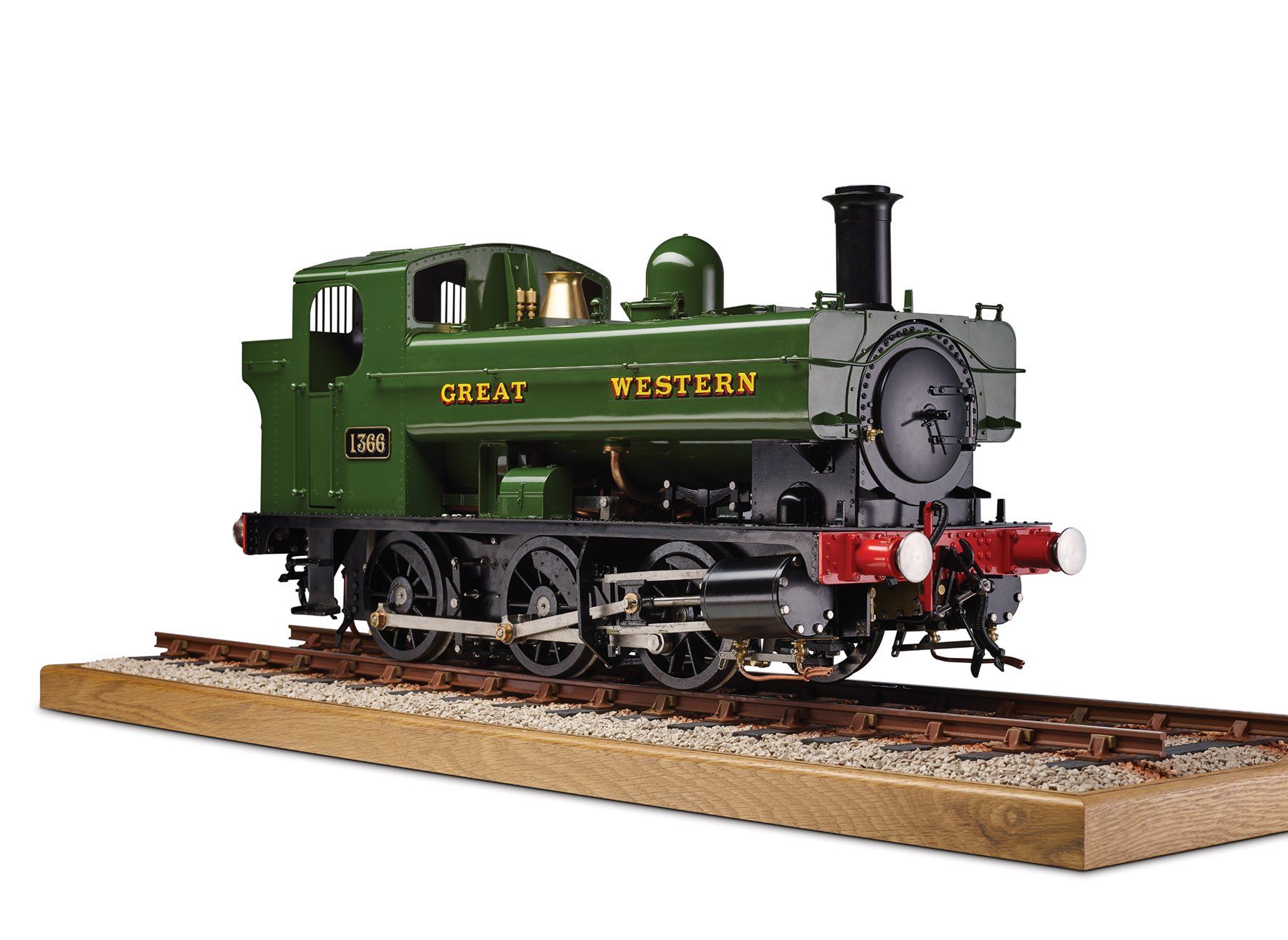

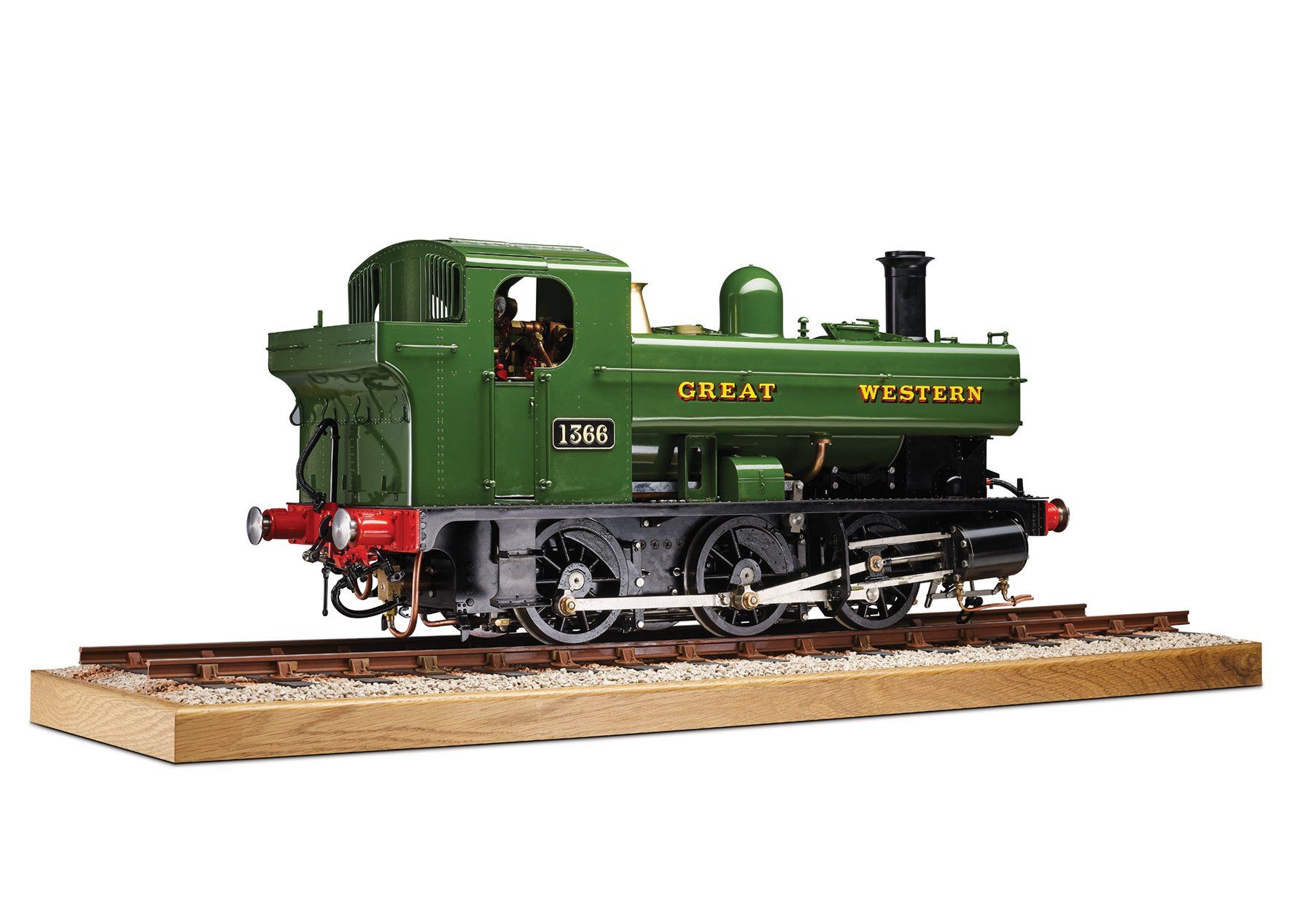

Unique in several ways the GWR pannier tank is the balanced design that will decorate your display case or the route. Dei 1366 has two outer cylinders and Stephenson control. The manageable size and the C axis sequence make it an ideal model for customers who are looking for a relatively light model in 5 ”inches that is suitable for the narrow radius of less than 8 meters of a garden train or a club train.

description

Weighing around 35 kg, the model offers easy handling and transport. The uncomplicated outer cylinder arrangement offers reliability and easy maintenance. We have reserved workshop capacities to manufacture 50 models in 2019 with delivery in September this year. After completion of the batch, no further deliveries of this model are planned until 2022 at the earliest. With only € 5,995.00 shipping, the 1366 class offers an unbeatable value for a brand new, ready-to-use model.
We are happy to deliver your model in your desired number from 1366-71.
Each model has a silver-brazed copper kettle that is CE marked and hydraulically tested for double working pressure.
We deliver fully compliant certificates and papers including an EU declaration of conformity. The model is carefully built and, due to customer demands, now has a mechanical lubricator instead of the displacement type of the previous models. Before final delivery to our customer, each model is inspected by Mike Pavie with a 1.5x hydraulic boiler test to ensure that there is no leakage from the boiler fittings. The model is also operated with air as part of the inspection.
We are as thorough as possible in the development phase and manufacturing. Suppliers must agree to comply with our specially written quality standards manual. As a testament to our trust in the models we deliver, we offer a full 12-month guarantee on every product.

Technical specifications
5 ″ inches, track 5
Weight about 35kg
Coal-fired real steam locomotive

2 outer cylinders
Stephenson control
Cast iron cylinder blocks with bronze bearings
Steam operated cylinder valves
mechanical oiler
Silver brazed copper kettle. Hydraulically tested and CE approved.
Superheater
Reversal
Axle drive pump, injector and manual feed pump
Stainless steel frame
Suspension axles
Two safety valves
Painted and ready to run
Painted and ready to use on delivery 12 months guarantee
